    Overview

    Overview

    The customer receives an e-mail with the payment details and has to transfer the money for the ordered goods in advance. First after the full amount has been received on the merchant bank account the goods will be shipped.

    Customer Experience - Prepayment

    Payment method configuration

    To be able to activate the prepayment payment method, first a bank account connection should be configured.

    To set Bank account configuration settings:

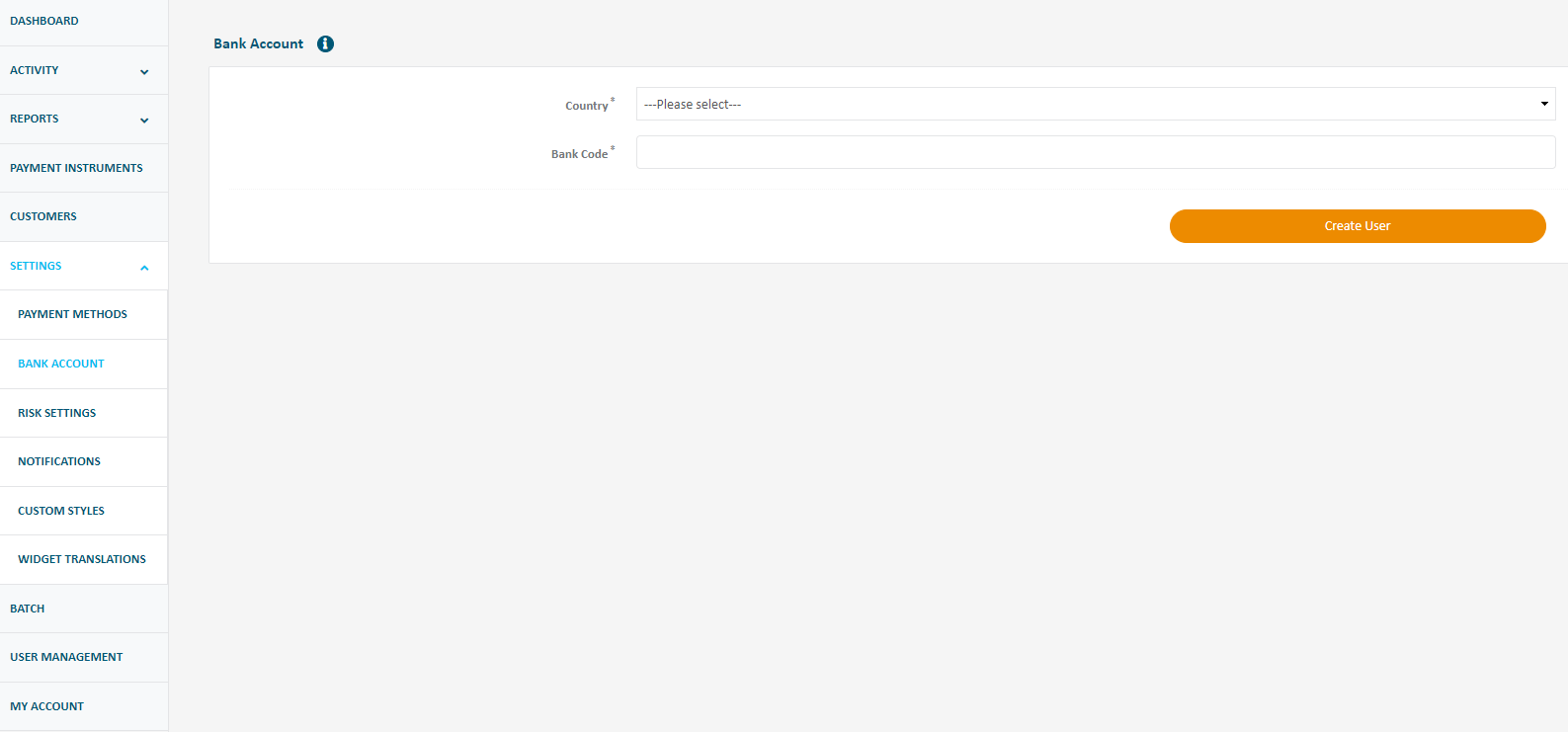

    • Go to "Bank Account" section from vertical menu in Merchant Center. It will open page where you can fill your bank account data.
    Prepayment bank account 1

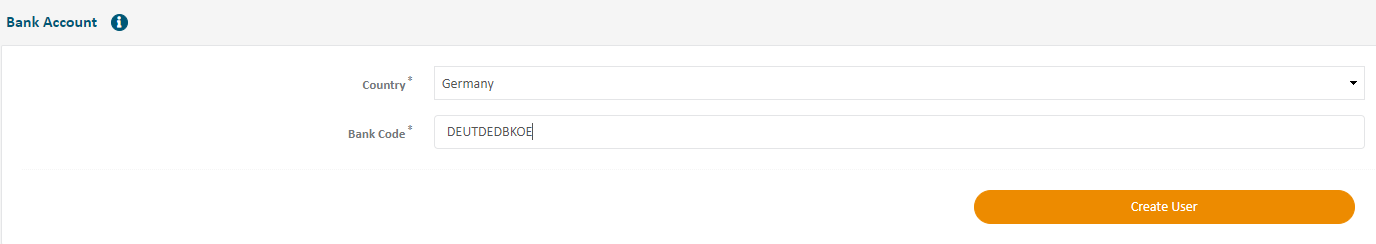

    • Select Country, fill BIC of your Bank account and Click on "Create User".
    Prepayment bank account 2

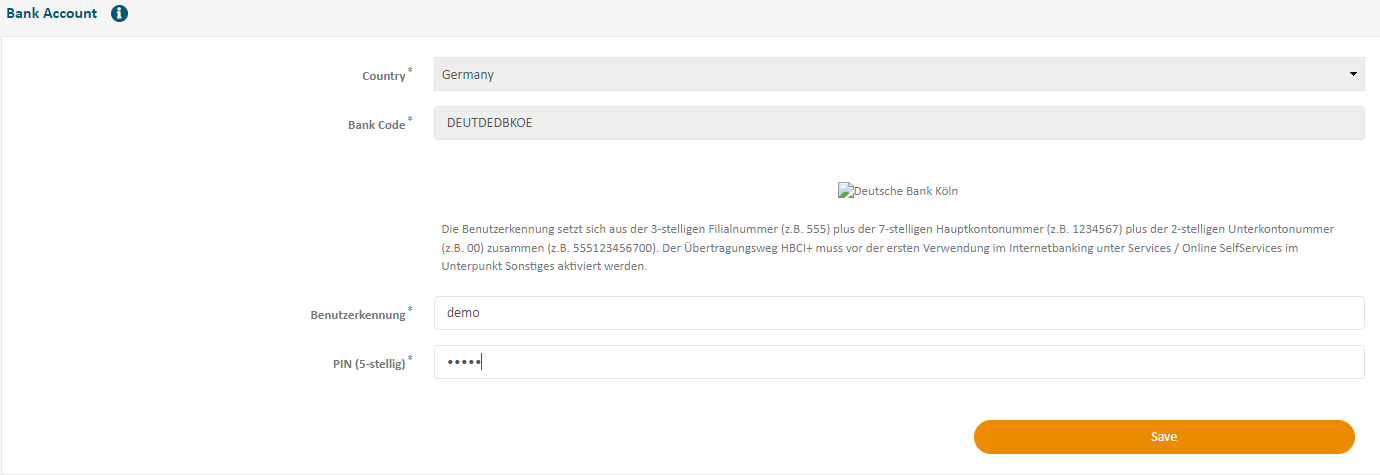

    • It will open additional fields section to fill user and PIN.
    Prepayment bank account 3

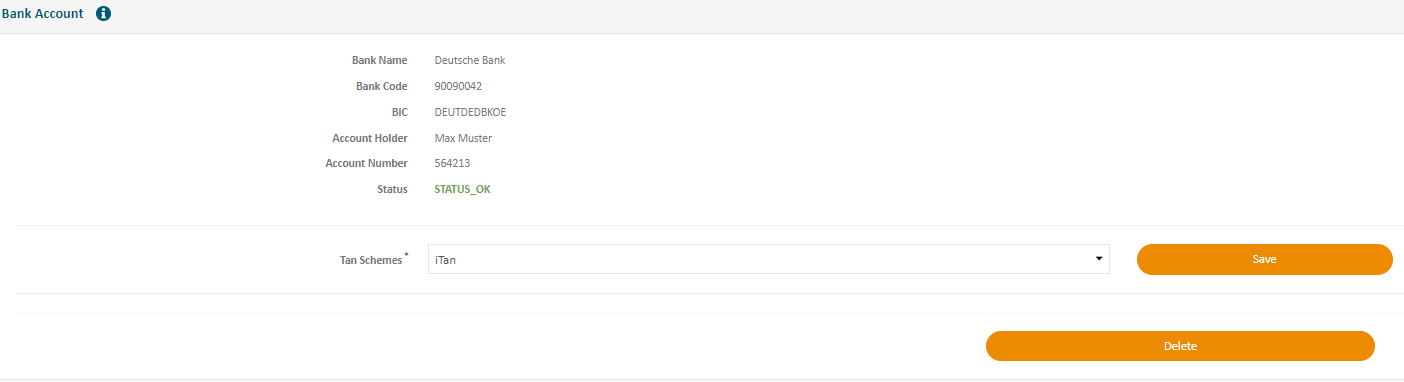

    • Now you must activate the bank account in your bank account. After that you must come back, and you will see details of your account, and you can select "Tan Schemes".
    Prepayment bank account 4
    • To activate the payment method you must contact to Account manager or admin.

    Customer experience

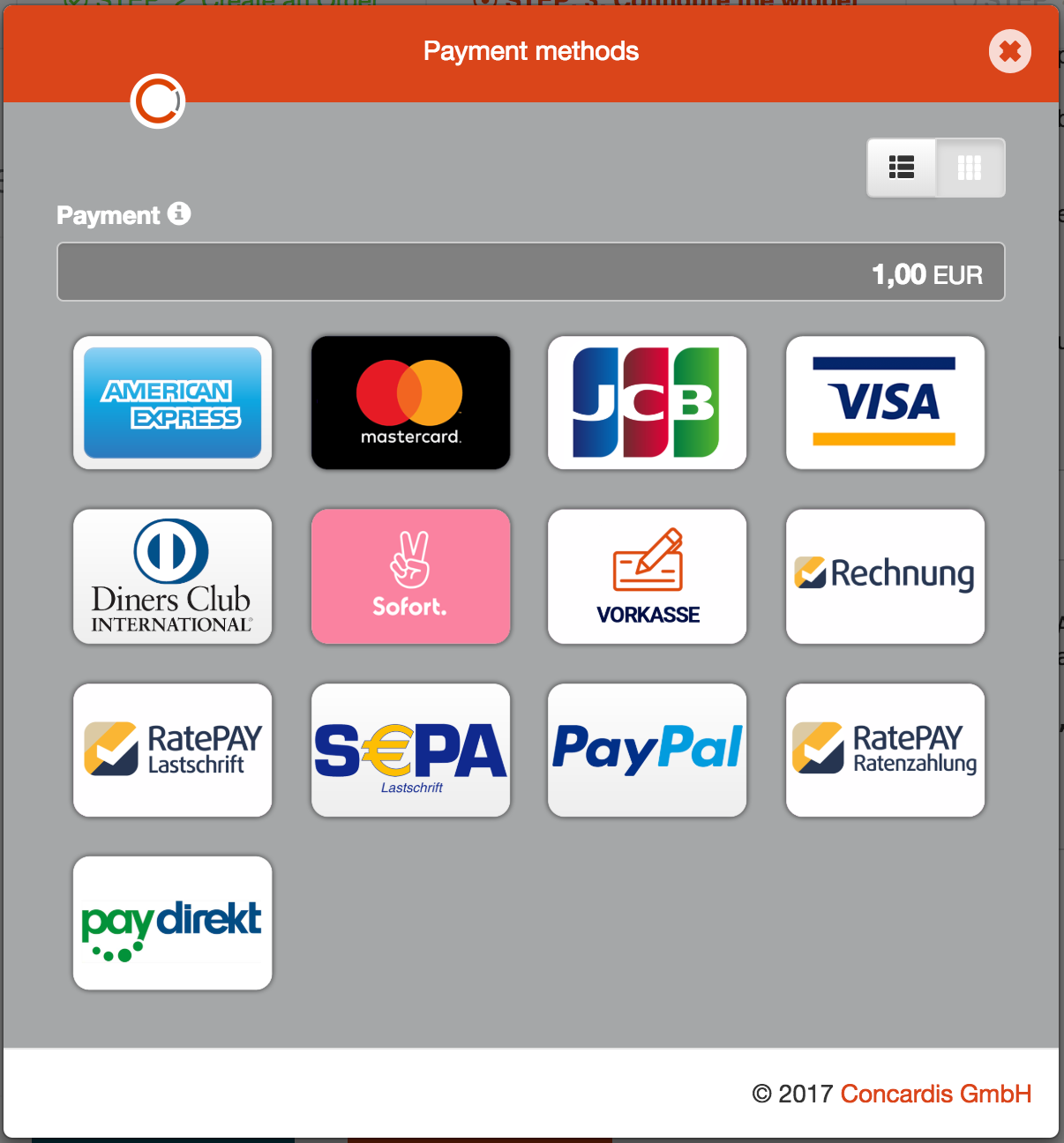

    • Select payment method from the available payment methods.
    Prepayment widget 1

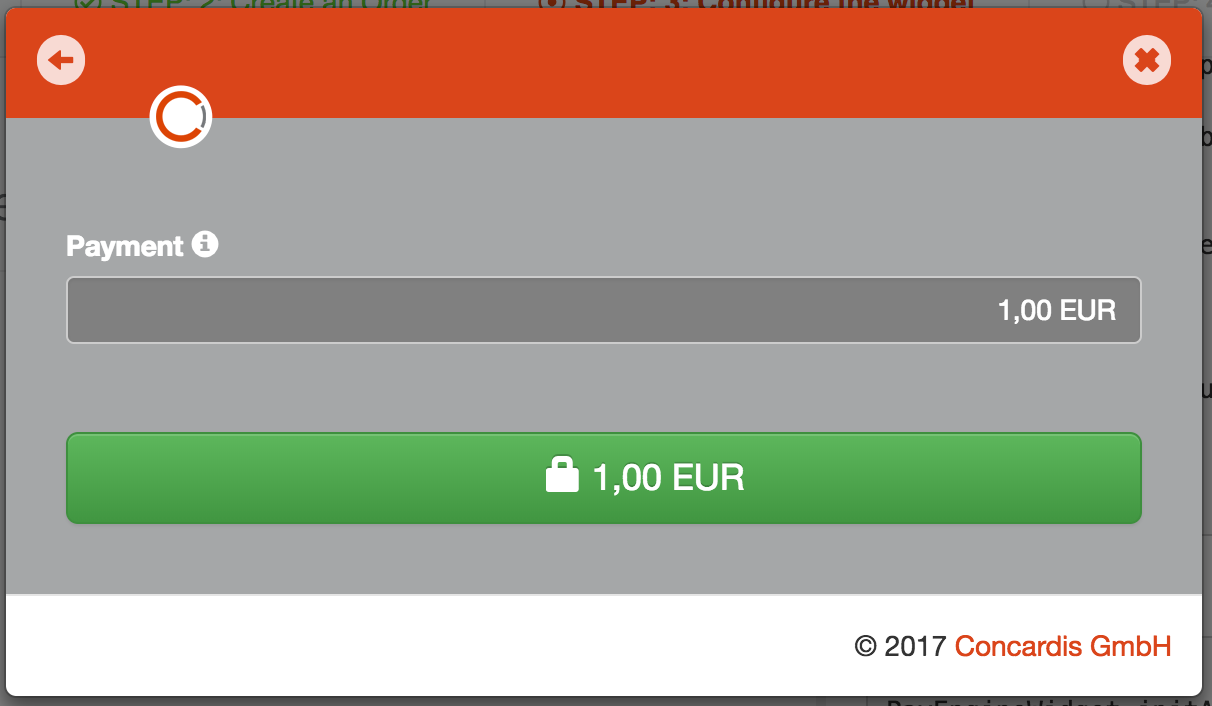

    • Confirm the payment.
    Prepayment widget 2

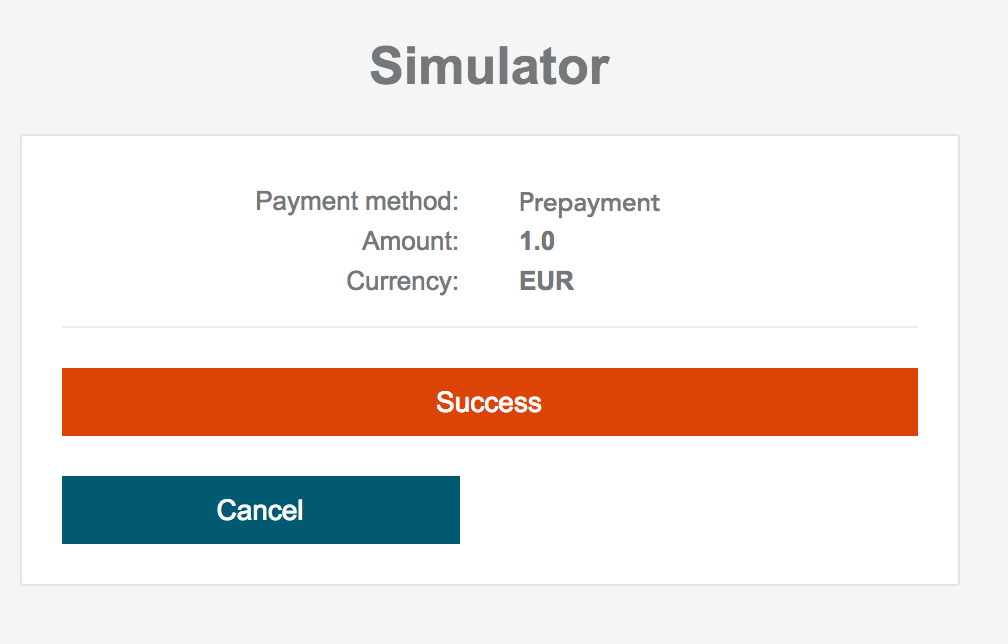

    • After finishing the payment, customer will be redirected to Success or Failure page.
    Prepayment widget 3

    PayEngine Details - Prepayment

    General

    NameDetails
    ProductPrepayment
    ChannelsECOM
    CurrenciesEUR
    CountriesDE
    Technical FlowSynchronous
    RecurringNo
    ChargebacksNo

    Supported Features and Services

    NameDetails
    DebitYes
    PreauthorizationNo
    CancelationNo
    CaptureNo
    RefundsYes (full and partial)
    Note: for more information, contact PayEngine support team.
    NotificationsYes (webhook and email)
    PayLink IntegrationNo
    Settlement ReportingNo

    Integration Types

    NameDetails
    APIYes
    WidgetYes
    BridgeNo
    Shop PluginYes

    Integration via API - Prepayment

    Step 1: Create customer (POST/customers)

    create customer specific request parameters

    ParameterMandatory/Optional (M/O)DescriptionExample
    EmailMthe e-mail adress of the customer user@example.com

    Alternatively to create a new customer an already existing customerID can be use.

    Example:

    Create Customer (POST/customers)

    Create customer request

    {
      "email": "user@example.com",
      "merchantCustomerId": "merchantCustomerId_696501538"
    }

    Create customer response

    {
      "customerId": "customer_fl6wae2jqn",
      "email": "user@example.com",
      "merchantCustomerId": "merchantCustomerId_696501538",

    Step 2: Create preauth

    After successful processed preauth there are two following options for sending the prepayment payment details to the customer:

    • The Payengine generate and sends an e-mail with the payment details to the customer.
    • The merchant generates and sends out an e-mail with the payment details to the customer. (the automated e-mail sending function should be disabled at the merchant center).

    The Payengine generates and provides a unique descriptor, which must be given by the customer as a payment reason in the bank transfer.

    Example:

    Preauth (POST/orders/preauth)

    Create preauth request

    {
      "product" : "prepayment",
      "merchantOrderId": "merchantOrderId",
      "description": "description",

    Create preauth response

    {
        "createdAt": 1537878271910,
        "modifiedAt": 1537878271910,
        "merchantId": "string",

    Preauth specific response parameters

    ParameterMandatory/Optional (M/O)Description
    descriptorMThe Payengine generates and provides a unique descriptor, which must be given by the customer as a payment reason in the bank transfer.

    Step 3: Money received

    • After money is received on the merchant bank account the Payengine captured automatically the received amount.
    • The Payengine sends out a notification to the merchant when the money is received on the merchant bank account so that the order can be dispatched.

    Payment disruptions

    • Wrong "descriptor": In case of the customer provided wrong "descriptor" in the payment reason the PayEngine is not able to match the received money on the right Transaction. In this case possible refunds should be triggered manually by the merchant.
    • Bank transfer amount is too high: The PayEngine donot refund the balance automatically.
    • Bank transfer amount is too low: The PayEngine set a partial capture for the received amount and is waiting for rest amount to be paid. If the customer have not paid the rest amount, the transaction should be canceled by the merchant (without sending the goods) and refund of the already paid amount should be carrie out manually.
    • No money received on the merchant bank account: The created order is valid for 7 days. After 7 days the order will be automatically cancelled.

    Notifications - Prepayment

    Step 1: Set up notifications

    For receiving Notifications from the Payengine on status changes for prepayment the notification service should be set up

    Step 2: Receive and process notifications

    StatusDescription
    captureA notification will be send if the full or a partial amount is received on the merchant bank account.

    Testing

    The testing is processed via the Payengine Simulator.

    Testable functionalities:

    • Successful
    • order decline (use 11.11 or 111.11 as amount to cause a decline)
    • Payment details e-mail (on the roadmap)
    • Payment received information e-mail(on the roadmap)
    • Partial/full cancel
    • Capture
    • Partial/full refund
    • Notifications - capture - settled

    Order Details - Prepayment

    Prepayment Orders can be found under the "Orders" section of the Merchant Center.

    Prepayment order transactions 1

    To view order details, click on the Actions button for selected order:

    Prepayment order transactions 2

    It will open detailed view of the Prepayment Order.

    Prepayment order transactions 3

    In the top Info container can be found information about Order:

    • Payment method Icon
    • Amount and currency for the order
    • Status of the order
    Prepayment order transactions 4

    Second part contain sections with additional information:

    • Summary of the order
    • Billing Address
    • Shipping Address
    • Customer information
    • Persona information
    • Payment instrument information
    Prepayment order transactions 5

    Next part contains Transactions information.

    Prepayment order transactions 6

    The left part of the section contains list of created transaction:

    Prepayment order transactions 7

    The right contains detailed information about the selected transaction:

    prepayment order transactions 8

    Transaction Details - Prepayment

    After the order is created, the information about the transaction can be found in Transactions section.

    In the left part, you will see general information about the transaction:

    • Transaction Id
    • Date and time when transaction was created
    • Amount and currency if the transaction
    • Status of the transaction
    • Transaction type
    Prepayment order transactions 1

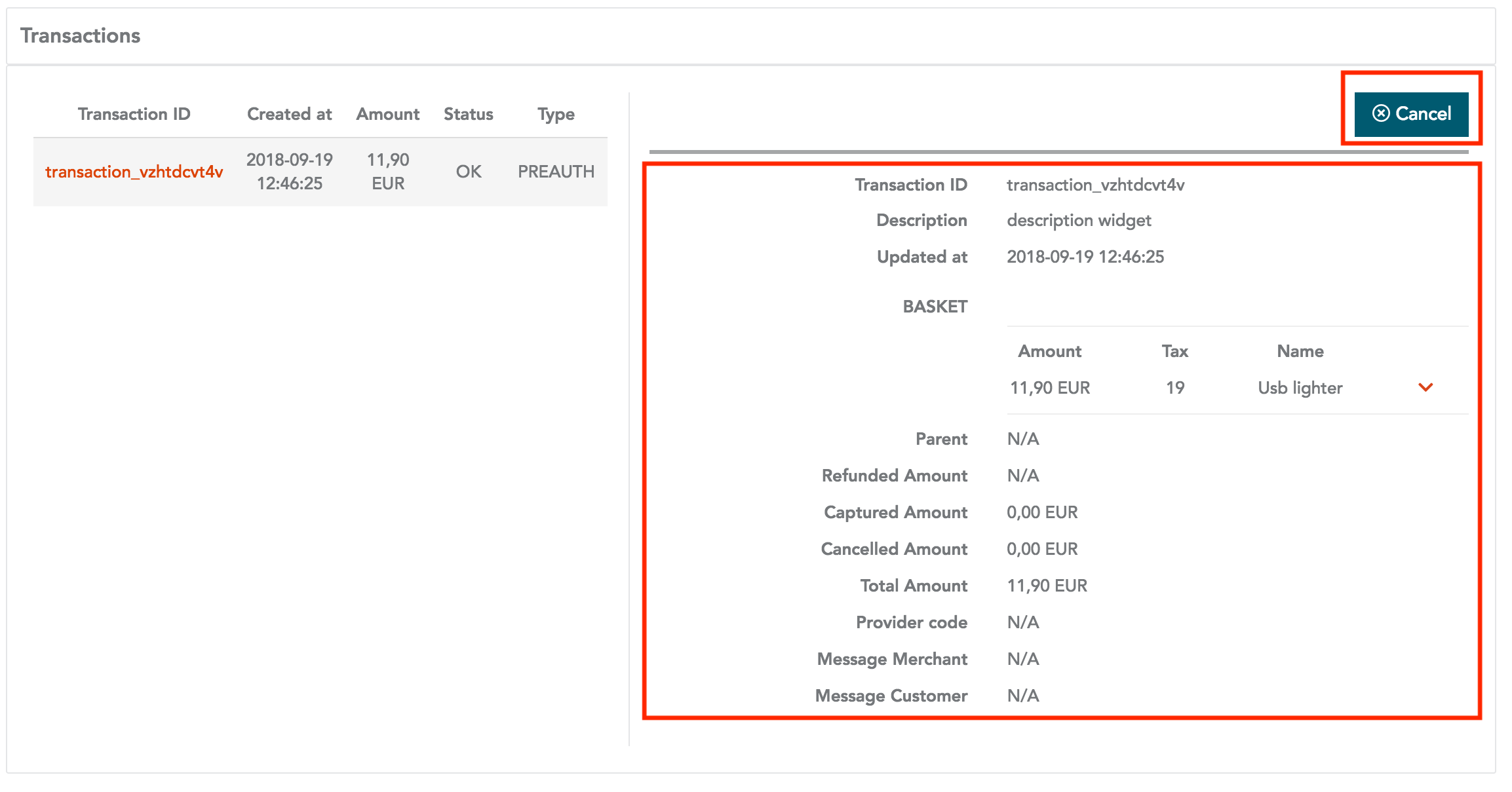

    In the right part you will see detailed information about the selected transaction and a button to cancel it:

    Prepayment order transactions 2

    Depending on the order status, there are different transaction types and statuses:

    Created Order

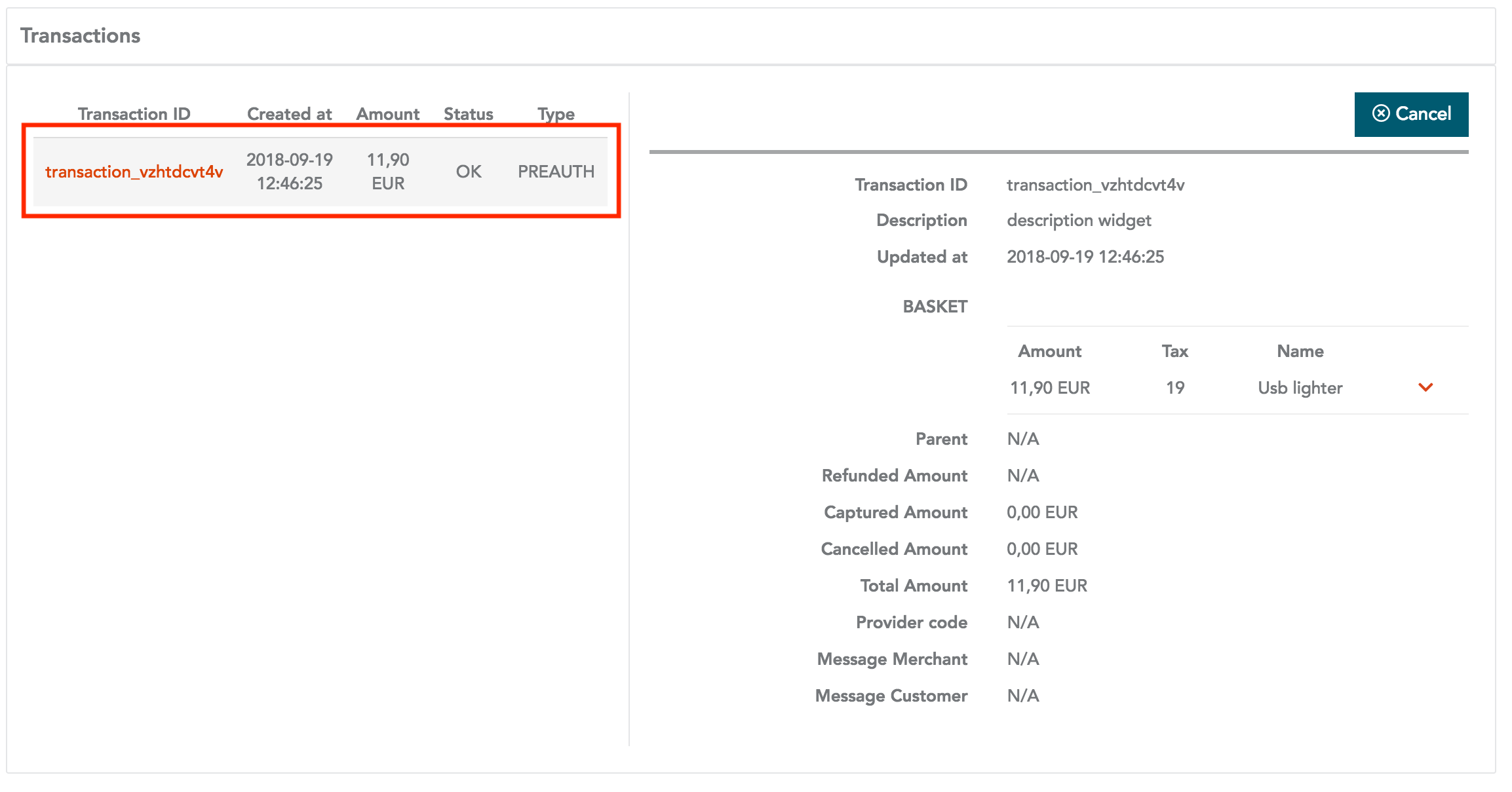

    When the order is created:

    • Status of the transaction is "OK"
    • Transaction type is "PREAUTH"
    Prepayment order transactions 3

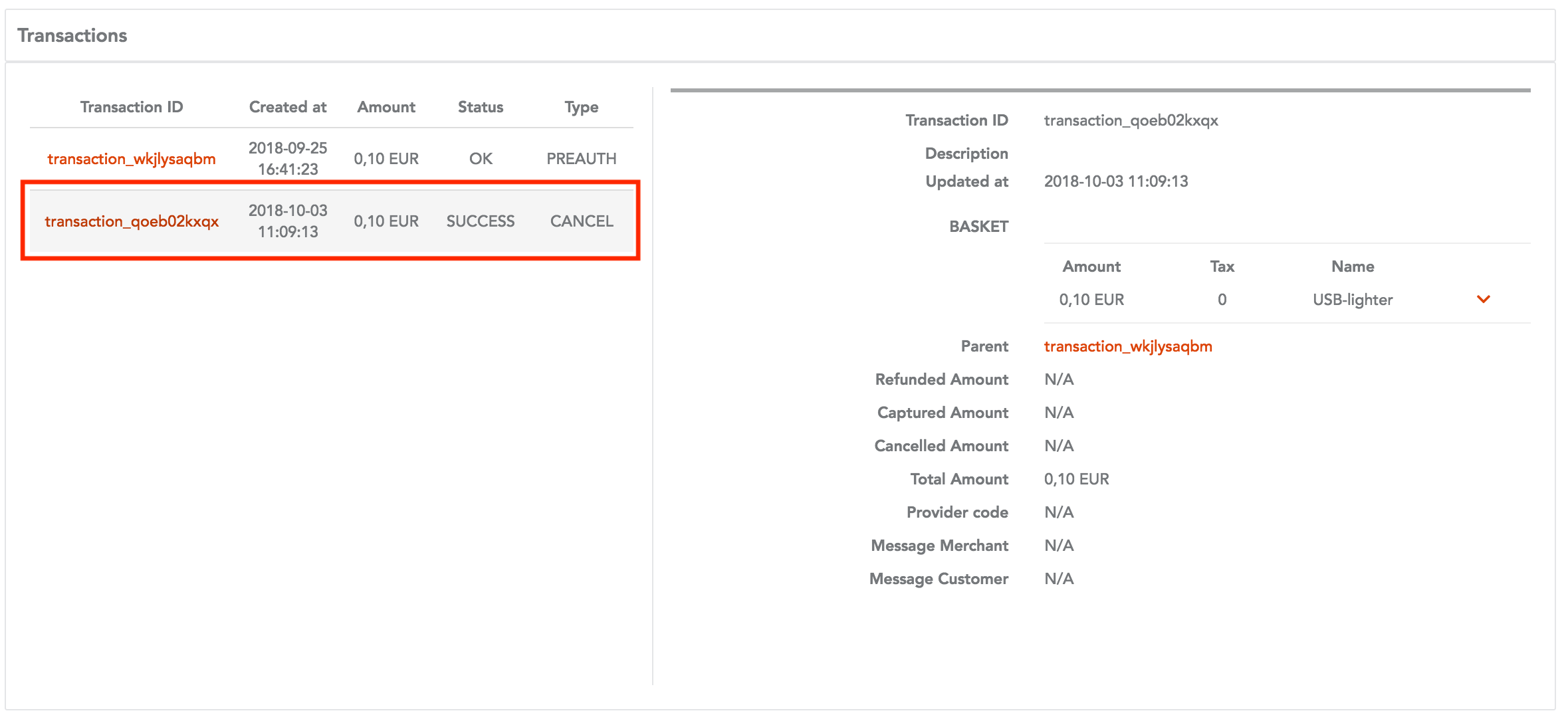

    Full Cancellation of Order

    When the order is canceled, In the left part you will see additional transaction with:

    • Status of the transaction - "SUCCESS"
    • Transaction type - "CANCEL"
    • Amount - full amount of the order
    Prepayment order transactions 4

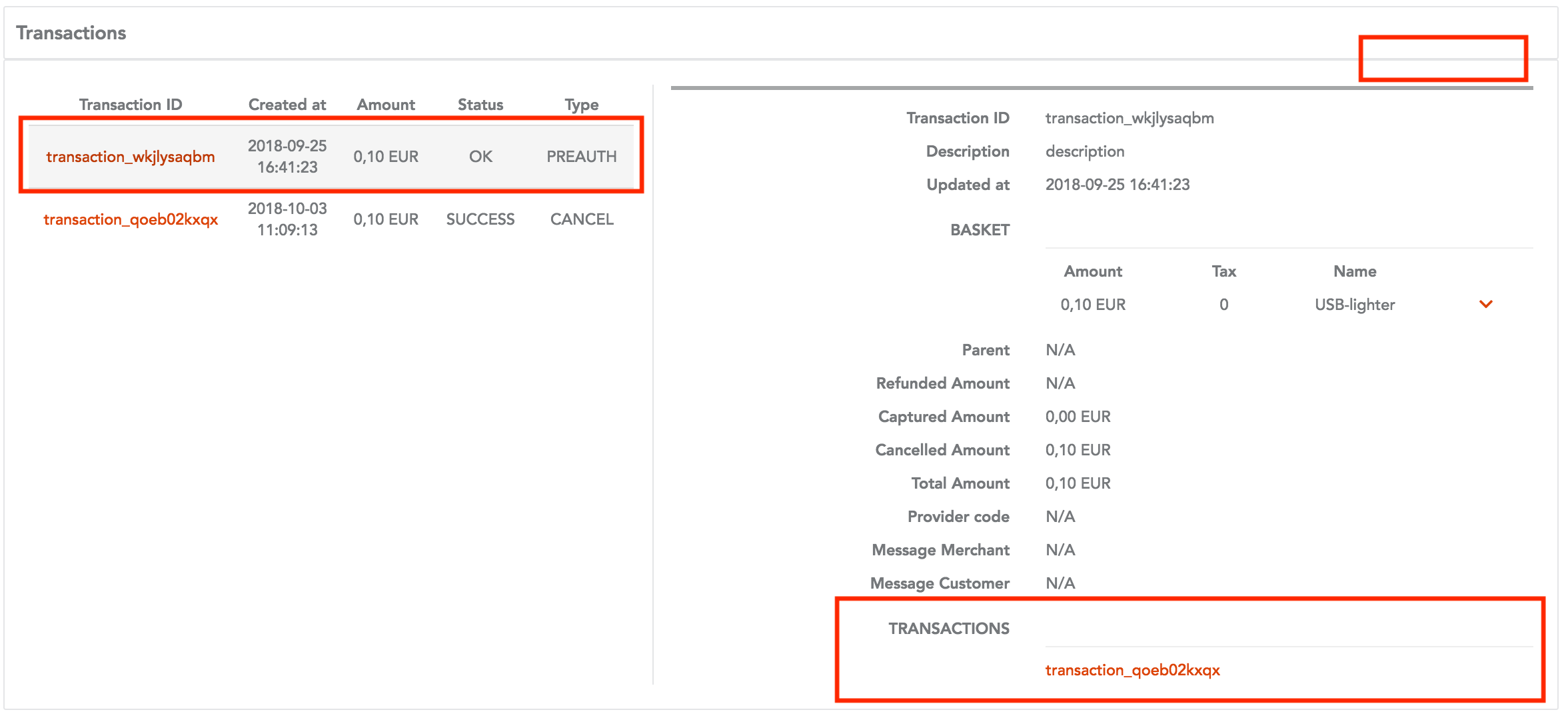

    There are list of connected transactions in PREAUTH transaction details section, and the "Cancel" button is missing.

    Prepayment order transactions 5

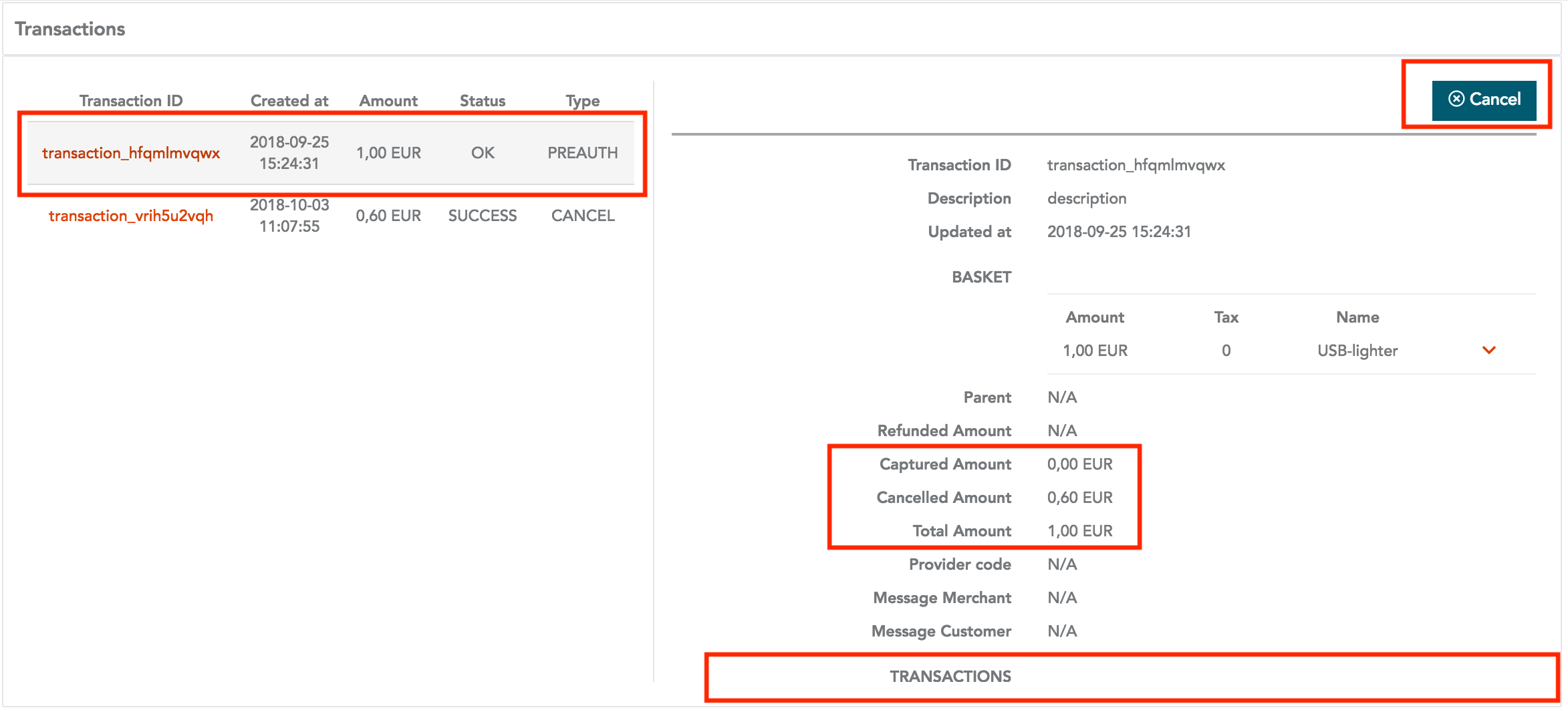

    Partial Cancellation of Order

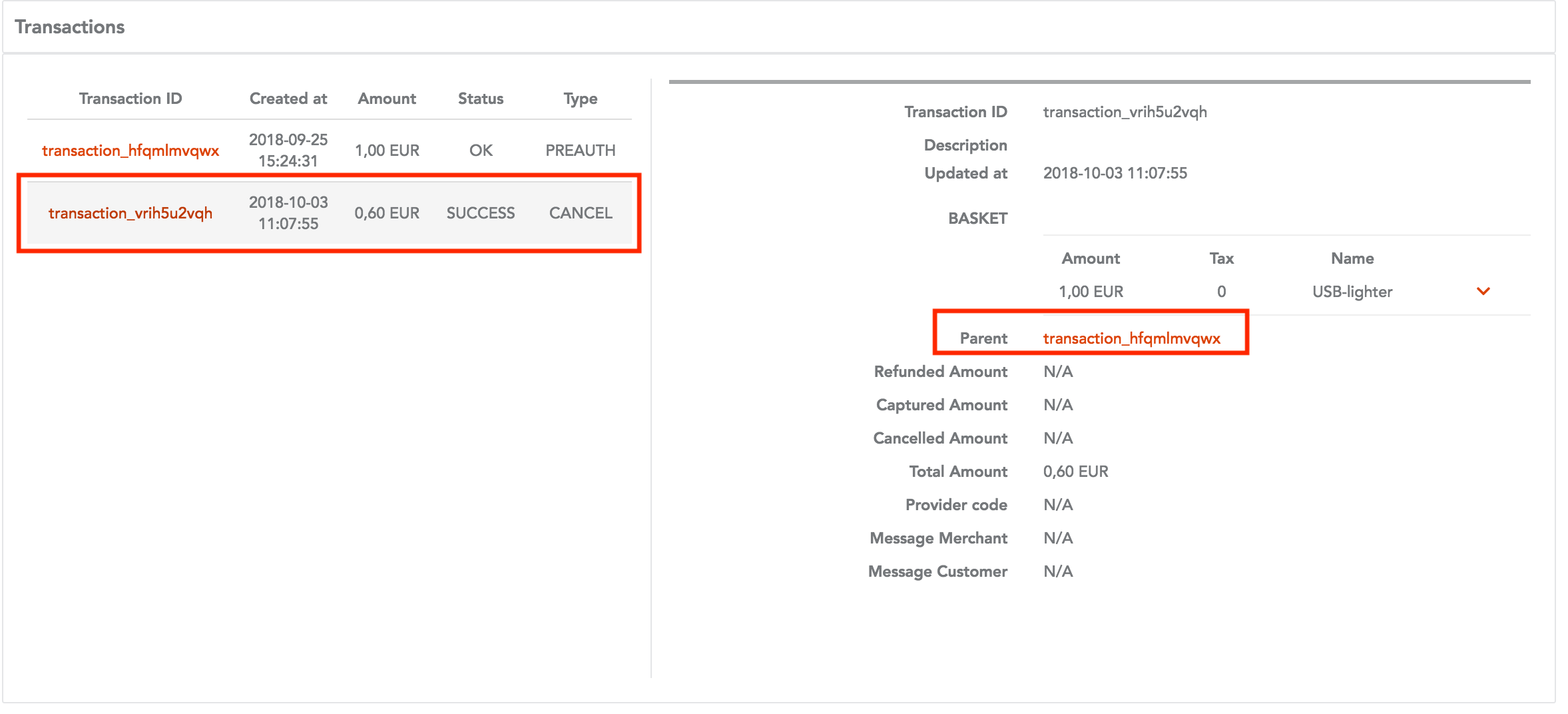

    When the order is partially canceled, In the left part you will see additional transaction with:

    • Status of the transaction - "SUCCESS"
    • Transaction type - "CANCEL"
    • Parent - parent PREAUTH transaction
    • Amount - canceled amount of the order
    Prepayment order transactions 6
    • There are list of connected transactions in PREAUTH transaction details section.
    • Canceled amount is visible in transaction details section.
    • The "Cancel" button is available, but only for the remaining amount.
    Prepayment order transactions 7

    Captured Order

    When the order is payed in the left part you will see additional transaction with:

    • Status of the transaction is "SETTLED".
    • Transaction type is "CAPTURE".

    Expired time for payment

    When the time for payment is expired in the left part you will see PREAUTH transaction with:

    • Status of the transaction is "PREAUTH".
    • Transaction type is "EXPIRED".
    • There is no Cancel option.
    prepayment order transactions 8
